Four Sides Chilli Sauce Packing Machine
Material: butter,sauce
Capacity: 40-80bags/min
Loading Port: Qingdao port and Shanghai port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: This packing machine is mainly used for liauid seasoning,soy sauce,chill oil,sesame oil and so on.
Product Description

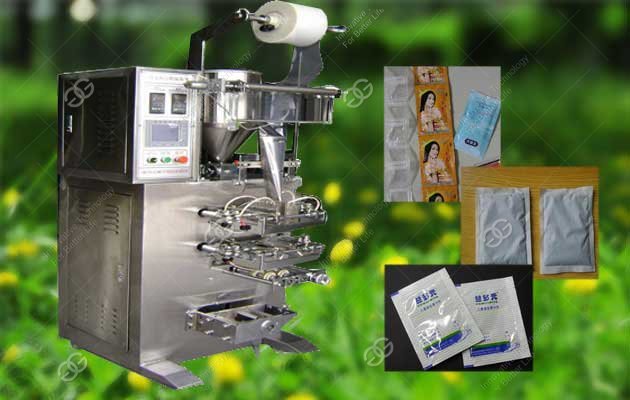

Four Sides Chilli Sauce Packing Machine
This four sides sauce packing machine adopts correcting system controlled by microcomputer, owing to a response signal is and set pass through microcomputer it can accomplish whole set to synchronization, sack length,position fixing, voluntarily follow the tracks of light-mark and voluntarily diagnose trouble and show to screen.
Detailed suitable for: Liquid seasoning, seasoning packets, soy sauce, chili oil, sesame oil, flavored oils, vegetable, salad, milk shakes. Commodity liquids, cosmetics Liquids, lotions, skin care water, essence, perfumes, face cream, shampoo, bath gel, hand sanitizer, disinfectant, toilet fluid, supple liquid. Medicine liquids Chinese medicine liquid, liquid pesticide, insecticide liquid, liquid herbicides, leaves and other types of liquid fertilizer liquid semiliquid triangular closure sealing edges and back seal packaging.
Advantages:
1:bag, measuring, filling, sealing, cutting, counting automatic completion.
2:the computer controlled stepper motor pull bags, regardless of length or cursor tracking bag bag, set and cutting, without air conditioning in one step, saving time and film.
3:Temperature independent PID control, more suitable for packaging materials.
4:can be equipped with devices: printer ribbon, inflatable devices, exhaust, horizontal seal punching device, a rotary cutter, small knife, beat former unit, batch cut pneumatic knife.
5:the driving system is simple, more reliable, more convenient maintenance.
6:packaging materials: polyester / polyethylene (PET / PE), paper / polyethylene (Paper / PE), polyester / aluminum / polyethylene (PET / AL / PE), OPP / PE (OPP / PE )
| Model | GG-300 |
| Bag Size Making | L:40-280mm |W: 20-120mm |
| Thickness of Packing Film | 0.03-0.07mm |
| Diameter of Rolling Paper | =<400 |
| Dimensions |
780*920*1680mm |
| Packing Speed | 40-80 Bags/min |
| Power | 1.8KW/220V |
| Measure Range | 10-100ML |
| Weight | 350kg |
