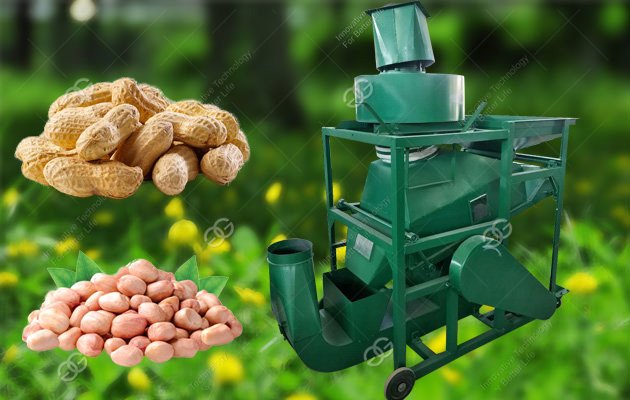

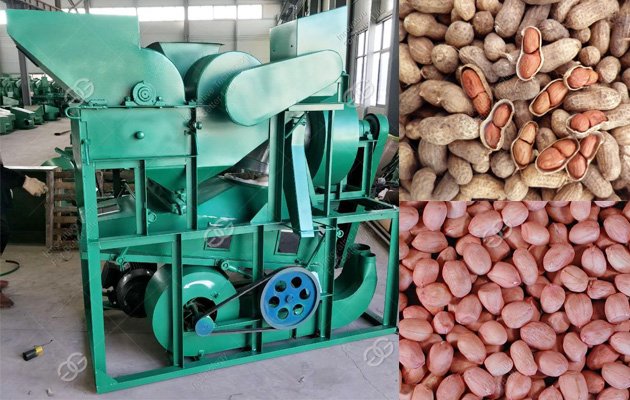

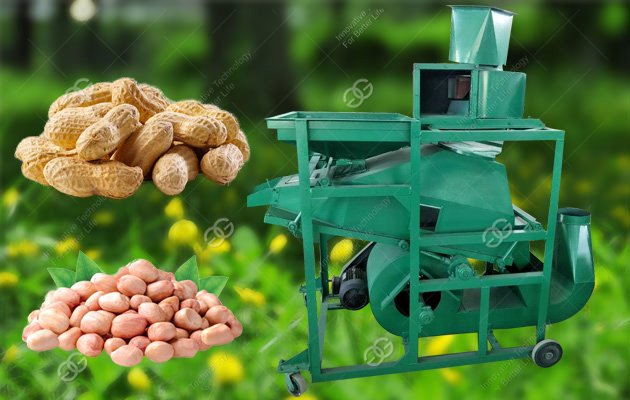

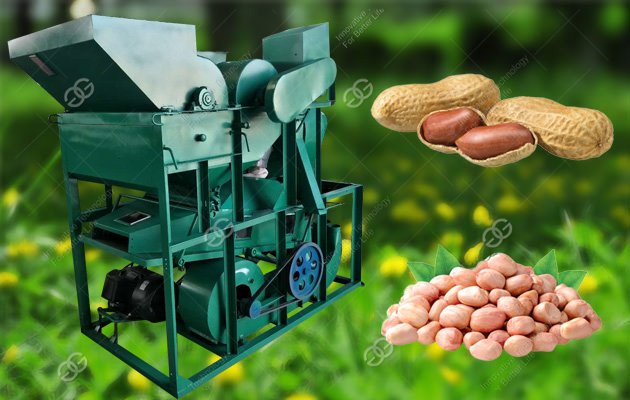

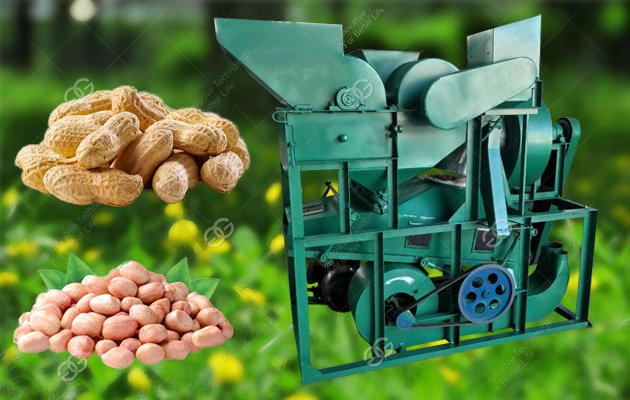

Peanut Decorticator|Peanut Sheller
Material: Peanut
Capacity: 3500-6000kg/h
Loading Port: Qingdao Port and Shanghai Port
Warranty time: 12 month
Supply ability: 100 Sets/month
Country Of Origin: China
Certification: CE
Description: This peanut decorticator is a new generation of models to remove the peanut shell, reliable quality, excellent performance, low processing rate of broken peanuts, sorting clean, good color, good effect to the hybrid, less loss.
Product Description
Peanut Decorticator|Peanut Sheller
This peanut decorticator is a new generation of models, reliable quality, excellent performance, low processing rate of broken peanuts, sorting clean, good color, good effect to the hybrid, less loss. The performance indicators are better than the national standard.
Installation And Commissioning of Peanut Decorticator Machine:
(i) Installation requirements
1, in accordance with figure 1 the machine is installed smoothly on the flat ground, and reliable fixed, grounding wire to be connected deep buried. Installation of ancillary environmental protection facilities see attached drawings.
2, according to the requirements of the installation of motor, triangular tape, and adjust the triangular tape tightness, (see Figure 2), the installation of a fixed security cover.
3, after installation, the transmission parts should be flexible rotation, no card-lag phenomenon.
4, choose suitable for the work of the site and azimuth fixed connection shell pipe.
5, each motor should be installed separate knife, power line installation is reasonable, safe, good insulation (see Figure 3).
(ii) Commissioning
1, to determine the direction of the motor operation and direction of the same, correct after the "Operation Method" of the first boot sequence to start separately. After 5 minutes of empty operation, there is no abnormal condition before the work can be carried out.
2, prepare the processed materials, look at peanut varieties and peanut size, adjust the appropriate cage-gate processing, to ensure that the crushing rate of peanut is low, or the crushing rate increases.
3, first take a small amount of peanut fruit with peanuts to peel the shell machine for trial stripping, to see all kinds of situations, to determine whether the choice of cage grid is correct. Peel the shell system, such as the occurrence of peanuts and peanut fruit mixed at the same time outflow, should be stopped at the end of the swing rod at the mouth to improve properly.
Related Machine:
Peanut Skin Peeling Machine
Video:
Related Machine:
Peanut Skin Peeling Machine
Video:
| Model | GG-3500 | GG-4500 | GG-6000 |
| Capacity | 3500KG/H | 4500KG/H | 6000KG/H |
| Nut Shelling Rate | More than 98% | More than 98% | More than 98% |
| Breaking Rate | Less than 3.8% | Less than 3.8% | Less than 2.8% |
| Loss Rate | Less than 0.5% | Less than 0.5% | Less than 0.5% |
| Damage Rate | Less than 3% | Less than 3% | Less than 3% |
| Impurity Rate | Less than 2% | Less than 1% | Less than 0.4% |
| Power |
Cleaner: 4KW, Grade 2;3KW, Grade 4 Sheller: 7.5KW, Grade 6;7.5KW, Grade 4 |
Cleaner:5.5KW, Grade 2; 4KW, Grade 4 Sheller: 7.5KW, Grade 6; 3KW, Grade 4, 7.5KW, Grade 2. |
Cleaner: 5.5KW, Grade 2; 5.5KW, Grade 4 Sheller: 15KW, Grade 6; 5.5KW, Grade 4, 15KW, Grade 2. |
| Dimension | 3010*1360*2820mm | 3010*4350*2940 | 3750*4500*3530mm |
| Weight | 1100kg | 1640kg | 2760kg |
